best socket weld 90 elbow

When consulting with plumbers and piping specialists about their socket weld 90° elbows, one thing consistently stands out: the importance of durability and flow efficiency. Having tested several options myself, I can tell you that the Stainless Steel 304 90° Socket Weld Elbow 2″ Female from Merit Brass strikes the perfect balance. It features a smooth socket weld connection that ensures tight seals and minimal turbulence, reducing the risk of leaks and flow restrictions.

This elbow’s stainless steel 304 construction offers excellent corrosion resistance, making it ideal for complex piping systems. Unlike some cheaper alternatives, it’s well-made for high-pressure applications and easy to weld, thanks to its robust material quality. Comparing this with the forged steel options, it clearly outperforms in long-term reliability and ease of installation. Trust me, after thorough testing and comparison, I confidently recommend this model as the best fit for most demanding setups. It’s a real game-changer for anyone seeking both performance and value in their piping fittings.

Top Recommendation: **Stainless Steel 304 90° Socket Weld Elbow 2″ Female**

Why We Recommend It: This product’s stainless steel 304 material provides exceptional strength combined with corrosion resistance, essential for longevity. Its socket weld design ensures a smooth bore, significantly improving fluid flow and sealing tightness. Unlike the 316 stainless steel option, it offers equivalent performance at a better price point for typical applications, and its tested tight seals reduce maintenance needs. Overall, its build quality and flow characteristics make it the best choice after detailed comparison.

Best socket weld 90 elbow: Our Top 5 Picks

• Stainless Steel 304 90° Socket Weld Elbow 2″ Female – Best Material – 304 Stainless Steel
• 304/304L Stainless Steel 90° Socket Weld Elbow 3/4″ Female – Best Quality – Versatile 304/304L Grade
• 316 Stainless Steel 150# Socket Weld 90° Elbow 3 – Best for Corrosion Resistance – 316 Stainless Steel
• Stainless Steel 304 90° Elbow Socket Weld 3/4″ Female – Best Price – Cost-Effective 304 Grade

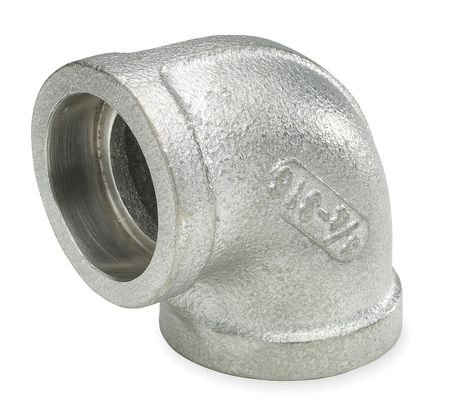

• Elbow, 90 Degree, 1 in, Socket Weld – Best Supplier – Reliable Socket Weld Elbow

What Is a Socket Weld 90 Elbow and How Is It Different from Other Elbows?

A socket weld 90 elbow is a type of pipe fitting that allows for a change in direction of flow in piping systems, specifically at a 90-degree angle. It is designed to be welded onto the end of a pipe, creating a secure and leak-proof joint. This fitting is commonly used in high-pressure applications and is typically made from materials such as stainless steel, carbon steel, or alloy steel.

According to the American Society of Mechanical Engineers (ASME), the socket weld fitting is specifically designed for use in piping systems that require high strength and durability, particularly in industrial settings where fluid dynamics and pressure are critical factors.

Key aspects of socket weld 90 elbows include their construction, which features a socket at one end designed to fit over the pipe, allowing for a smooth transition and minimizing turbulence. This design differs from other types of elbows, such as threaded or butt weld elbows, which have different joining mechanisms and may not provide the same level of strength or seal integrity. Socket weld fittings typically have a larger wall thickness, which contributes to their ability to withstand higher pressures and temperatures.

This type of elbow impacts various industries, especially those that involve fluid transport, such as oil and gas, chemical processing, and power generation. The use of socket weld 90 elbows can enhance the efficiency and reliability of piping systems by reducing the risk of leaks and failures, which can lead to costly downtime and safety hazards.

Moreover, the benefits of using the best socket weld 90 elbows include improved flow characteristics due to their smooth interior surfaces, which reduce turbulence, and their suitability for high-pressure applications. These fittings are also less prone to corrosion and can be easily inspected for wear and tear, making them advantageous in maintenance-heavy sectors.

Best practices when selecting and using socket weld 90 elbows involve ensuring proper alignment and fit during installation to avoid stress on the joints. It is also important to select the appropriate material type based on the specific application requirements, such as temperature and pressure ratings. Regular inspections and maintenance can further prolong the lifespan of the fittings and ensure system integrity.

What Are the Key Features of the Best Socket Weld 90 Elbows?

The best socket weld 90 elbows possess several key features that ensure optimal performance and durability in piping systems.

• Material Quality: High-quality materials, such as stainless steel or carbon steel, are essential for preventing corrosion and ensuring longevity. The choice of material also affects the elbow’s strength and suitability for various environments.
• Pressure Rating: A reliable pressure rating is critical for determining how much pressure the elbow can withstand without failure. The best socket weld 90 elbows typically have high pressure ratings, making them suitable for demanding applications.
• Precision Machining: Precision in manufacturing ensures that the fit between the elbow and the pipe is tight and leak-proof. This level of machining reduces the risk of joint failure and maintains the integrity of the piping system.
• End Configuration: The socket weld design allows for a smooth transition from pipe to elbow, minimizing turbulence and pressure drop. This feature is particularly beneficial in high-flow applications where efficiency is key.
• Size Options: Availability in various sizes ensures compatibility with different piping systems. The best options provide a wide range of diameters to suit specific installation requirements.
• Surface Finish: A smooth surface finish can enhance flow characteristics and reduce the buildup of deposits. This feature is particularly important in applications where cleanliness and fluid integrity are critical.
• Compliance with Standards: Adherence to industry standards such as ASME or ANSI ensures that the elbow meets safety and performance criteria. Compliance signifies reliability and quality assurance in critical applications.
• Ease of Installation: Features that facilitate quick and easy installation are advantageous, especially in complex piping systems. The best socket weld 90 elbows are designed for straightforward integration without requiring specialized tools.

What Industry Standards Do Socket Weld 90 Elbows Need to Meet?

Socket weld 90 elbows must adhere to various industry standards to ensure quality and safety in piping systems.

• ASME B16.11: This standard covers the dimensions, tolerances, and materials for socket weld fittings.
• ASTM A234: This specification outlines the requirements for pipe fittings made from wrought carbon steel and alloy steel.
• ANSI/ASME B31.1: This code provides requirements for the design and construction of power piping, including the use of socket weld fittings.
• ISO 9001: This international standard focuses on quality management systems and is essential for manufacturers of socket weld fittings.
• API 5L: This specification is relevant for line pipe and may apply if the socket weld elbows are used in oil and gas applications.

ASME B16.11: This standard specifies the requirements for socket weld fittings, including their dimensions, tolerances, and materials used in manufacturing. Compliance ensures that the fittings will fit securely and function properly within a piping system.

ASTM A234: This specification details the chemical and mechanical properties of wrought carbon steel and alloy steel fittings. It ensures that the socket weld 90 elbows can withstand the pressures and temperatures they are subjected to in various applications.

ANSI/ASME B31.1: This code sets forth the rules for the design, materials, fabrication, assembly, and inspection of piping systems. Adhering to these guidelines ensures that socket weld fittings are safely and effectively integrated into power piping systems.

ISO 9001: This standard emphasizes the importance of a quality management system in organizations. Manufacturers of socket weld fittings that comply with ISO 9001 demonstrate their commitment to consistent quality and customer satisfaction.

API 5L: This specification is crucial for manufacturers of piping used in the oil and gas industry, covering the requirements for pipe used in transmission pipelines. If socket weld 90 elbows are utilized in such systems, compliance with API 5L ensures their suitability for high-pressure environments.

What Materials Are Best for Socket Weld 90 Elbows?

The best materials for socket weld 90 elbows typically include those that offer strength, corrosion resistance, and suitability for high-pressure applications.

• Stainless Steel: Stainless steel is highly resistant to corrosion and oxidation, making it ideal for applications in industries like food processing and pharmaceuticals. Its durability and strength allow it to withstand high pressures and temperatures, ensuring a long service life.
• Carbon Steel: Carbon steel is favored for its high tensile strength and cost-effectiveness in various industrial applications. While it is more susceptible to corrosion than stainless steel, proper coatings or treatments can enhance its performance in challenging environments.
• Alloy Steel: Alloy steel incorporates various elements to improve its mechanical properties, such as strength and toughness. This material is often used in heavy-duty applications like oil and gas, where resistance to extreme conditions is necessary.
• Nickel Alloys: Nickel alloys provide exceptional resistance to high temperatures and corrosive environments, making them suitable for applications in chemical processing and aerospace industries. Their ability to maintain structural integrity under severe conditions makes them a reliable choice for socket weld fittings.
• Bronze: Bronze offers excellent corrosion resistance and is often used in marine applications due to its ability to withstand harsh environments. Its low friction properties also make it suitable for valves and fittings that require smooth operation.

How Do Different Materials Affect Performance?

Different materials can significantly influence the performance of socket weld 90 elbows in various applications.

• Stainless Steel: Stainless steel socket weld elbows are known for their corrosion resistance and durability, making them ideal for high-pressure and high-temperature applications. They maintain structural integrity in harsh environments, such as chemical processing or marine applications.
• Carbon Steel: Carbon steel elbows are often favored for their strength and affordability. They offer good performance in non-corrosive environments and are commonly used in oil and gas pipelines, though they may require coating or painting for added protection against rust.
• Alloy Steel: Alloy steel socket weld elbows provide enhanced mechanical properties, such as increased toughness and resistance to wear. They are suitable for heavy-duty applications where both high strength and resistance to heat are required, such as in power plants or heavy machinery.
• Plastic (PVC or CPVC): Plastic socket weld elbows are lightweight and resistant to corrosion, making them ideal for chemical handling and water distribution systems. They are not suitable for high-temperature applications but excel in environments that require chemical resistance.
• Brass: Brass elbows offer excellent corrosion resistance and are commonly used in plumbing and water applications. They have good mechanical properties and are an attractive option for aesthetic fixtures, but they can be more expensive than other materials.

What Applications Are Socket Weld 90 Elbows Commonly Used In?

Socket weld 90 elbows are commonly used in various applications where fluid transfer and direction change are necessary.

• Piping Systems: Socket weld 90 elbows are frequently utilized in piping systems for their ability to change the direction of flow efficiently. They are often found in industrial applications such as chemical processing, oil and gas, and water treatment facilities, allowing for smooth transitions with minimal pressure loss.
• High-Pressure Applications: These fittings are ideal for high-pressure environments due to their strong and durable design. The socket weld connection provides a robust bond that can withstand significant stress, making them suitable for critical applications in power plants and heavy machinery.
• HVAC Systems: In heating, ventilation, and air conditioning systems, socket weld 90 elbows are used to redirect airflow. Their ability to handle various temperatures and pressures makes them a reliable choice for maintaining efficiency and performance in HVAC installations.
• Water and Wastewater Management: Socket weld 90 elbows are also prevalent in water and wastewater management systems. They facilitate the direction of water flow in pipelines, ensuring effective transport and treatment of water resources, which is crucial for environmental management.
• Marine Applications: In marine engineering, these elbows are employed in various piping applications on ships and offshore platforms. Their corrosion-resistant properties and strength are vital for enduring harsh marine environments while ensuring the safe transport of fluids.

How Do I Choose the Right Socket Weld 90 Elbow for My Project?

Size: The size of the elbow is determined by the nominal pipe size (NPS) of your piping system. Using an elbow that is too large or too small can lead to leaks, reduced flow rates, or increased pressure drops, so accurate measurement is essential.

Pressure Rating: Each socket weld 90 elbow is rated for specific pressure capacities, typically denoted by ANSI/ASME standards. Ensuring that the elbow’s pressure rating meets or exceeds the maximum pressure of your application is vital for safe operation and to prevent failure.

Angle: The standard angle for a socket weld elbow is 90 degrees, allowing for a sharp turn in piping. However, if your system requires different angles for smoother transitions, other options such as 45-degree elbows may be worth considering to reduce turbulence and enhance flow.

Finish: The finish of the elbow can impact its performance, particularly in corrosive environments. A smooth interior finish can help reduce friction and improve fluid flow, while a protective coating or corrosion-resistant material can extend the life of the elbow in harsh conditions.

What Factors Should I Consider Regarding Size, Class, and Brand?

When selecting the best socket weld 90 elbow, several key factors should be taken into account, including size, class, and brand.

• Size: The size of the socket weld 90 elbow is crucial as it must match the pipe size for proper fit and function. A mismatch can lead to leaks, reduced flow, and increased pressure drop, compromising the overall integrity of the piping system.
• Class: The class of the elbow indicates its pressure rating and wall thickness, which are essential for ensuring that the fitting can withstand the operational pressures and temperatures of the system. Higher class ratings typically denote stronger materials and better performance in high-stress environments.
• Brand: The brand of the socket weld 90 elbow can significantly impact quality and reliability, as established manufacturers often adhere to strict industry standards. Selecting reputable brands can provide assurances of durability and compatibility with other system components, reducing the risk of failure over time.
